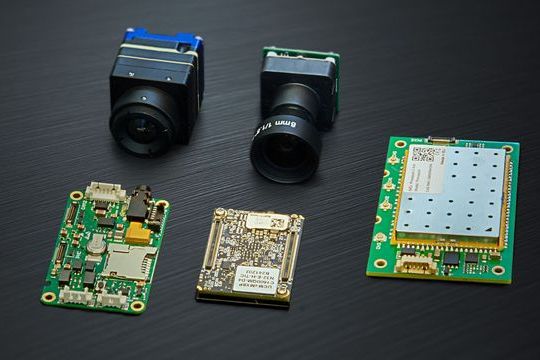

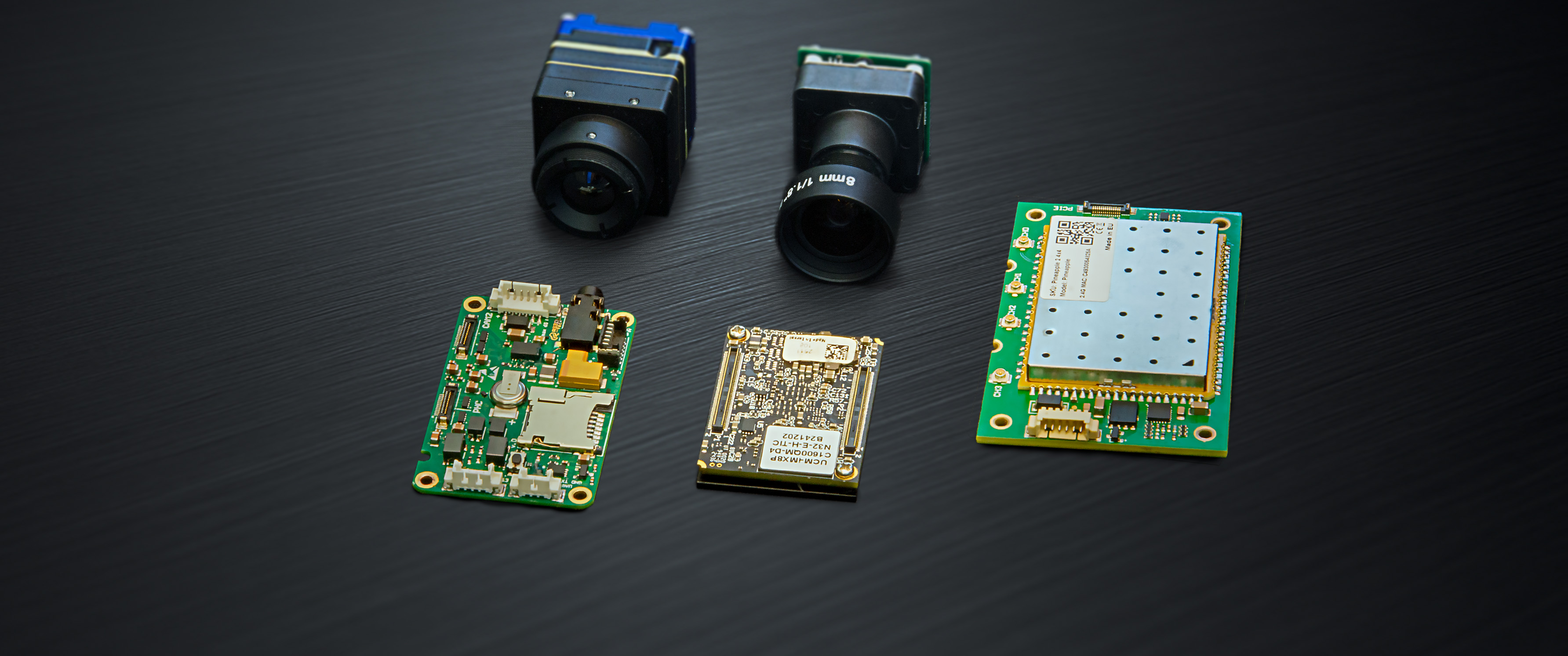

TFlow Bubo UAV set
TFlow Bubo UAV set
Dual camera, thermal imaging Machine Vision development hardware set with a dedicated radio module. Specially designed for UAV specific Machine Vision algorithms development and debugging.

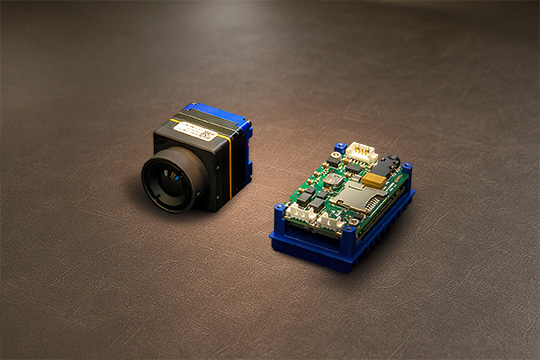

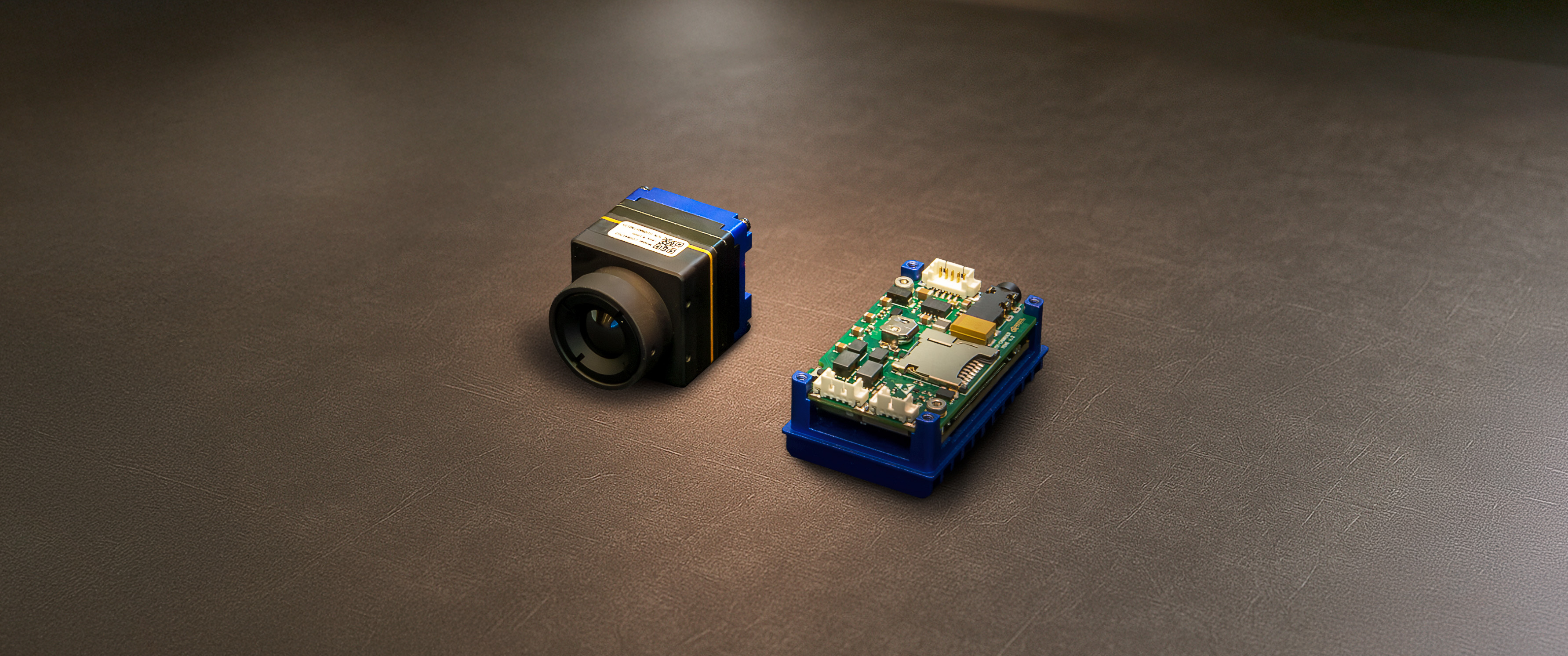

TFlow Mini
TFlow Mini
Miniature thermal imaging Machine Vision development hardware set for SWAP critical applications.

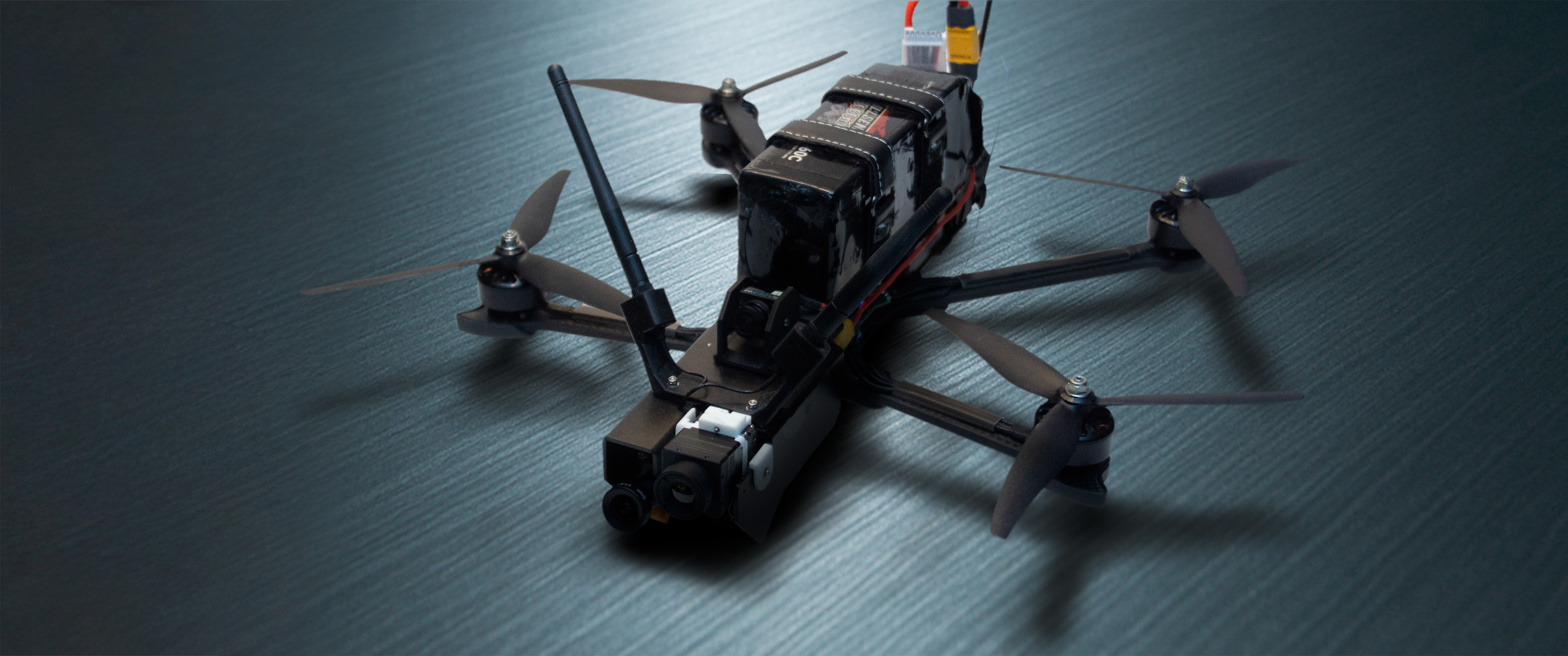

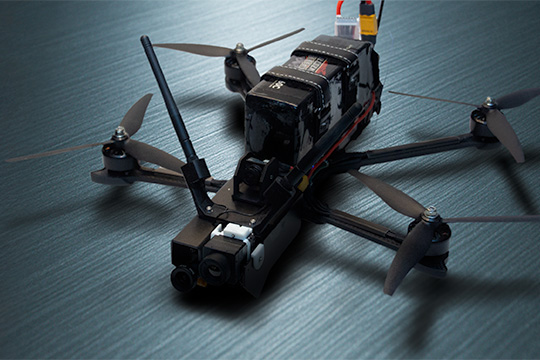

TFlow Bubo Chimera
TFlow Bubo Chimera
TFlow Bubo flying UAV laboratory - mounted on top of iFlight Chimera7 platform. Ready-to-Fly & Read-to-Develop. Rises yours UAV vision algorithm development speed and efficiency to rocket heights.
big slide thumb 1
big slide thumb 2
big slide thumb 3

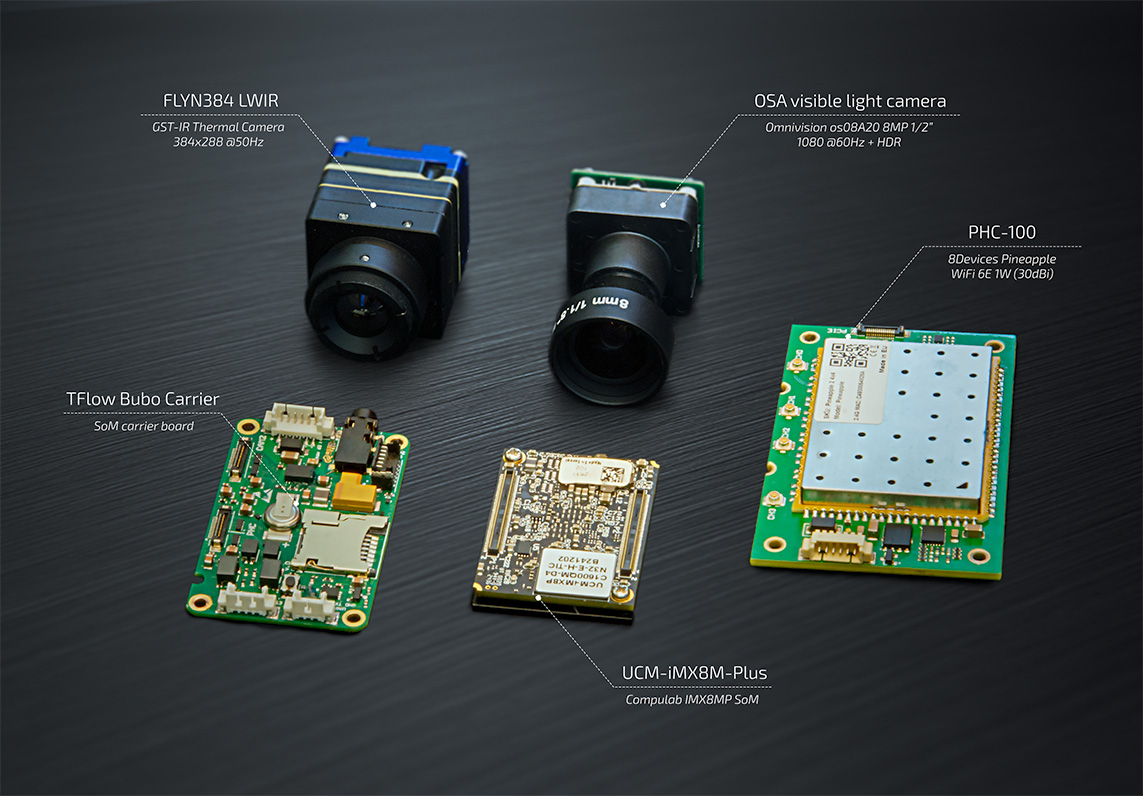

TFlow Bubo

  • Thermal 384x288@50Hz, <40mK GST-IR COIN412G2
  • RGB - 8MP + NIR extended, 4K@30FPS, FHD@60Hz Omnivision os08A20
  • CPU iMX8M Plus, 4x Cortex-A53, 1.6GHz, +GPU, +NPU
  • SOM - 2GB RAM, 16GB eMMC Compulab UCM-iMX8PLUS-C1600QM-D2-N16-E-TIC
  • Radio - 1W, custom channel freq. and width, Mesh 802.11s, WiFi6 8device, Pineapple series (custom edition)
  • Carrier - Power 2s-6s, ETH, UART, uSD, 1 lane PCle, 2xPWM, debug REEDL Tech, TFlow Bubo
€1710.00
€1130.00

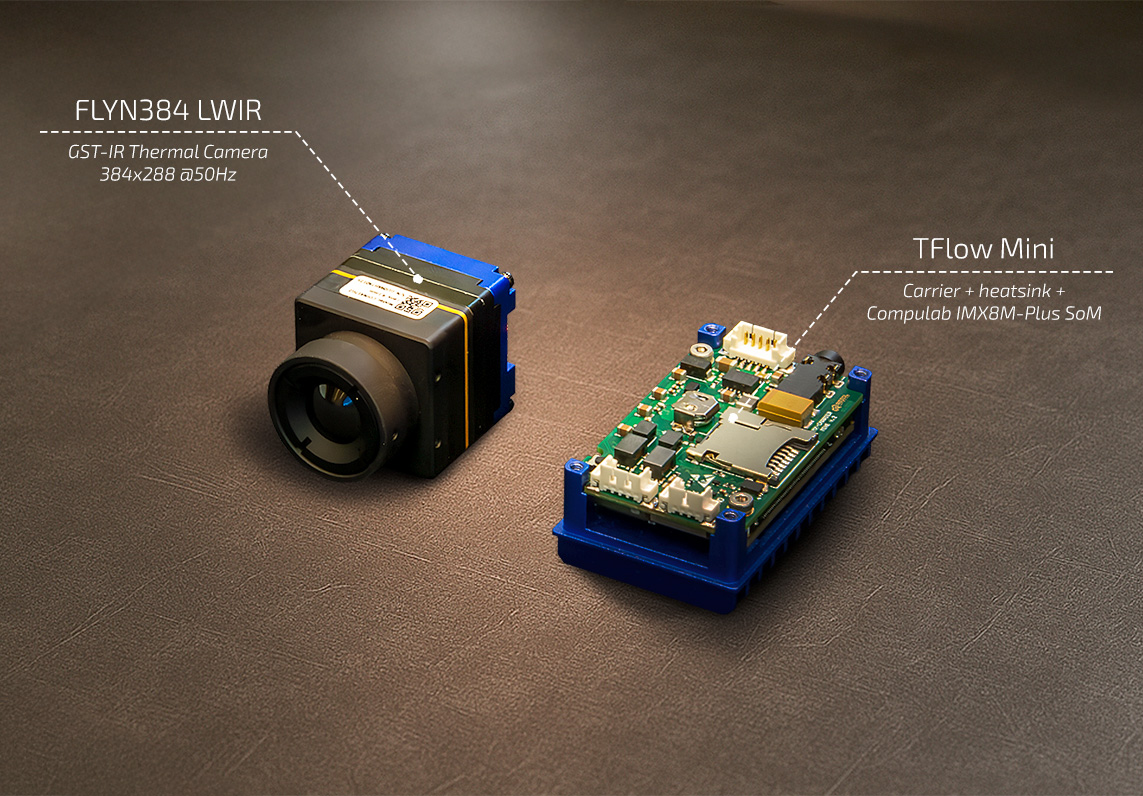

TFlow mini

  • Thermal 384x288@50Hz, <40mK GST-IR COIN412G2
  • CPU iMX8M Plus, 4x Cortex A53, 1.6GHz, +GPU, +NPU NXP
  • SOM - 2GB RAM, 16GB eMMC. Сompulab UCM-iMX8PLUS-1600QM-D2-N16-E-TIC
  • Carrier - Power 2s-6s, ETH, UART, uSD, debug console REEDL Tech, TFlow Mini
€1300.00
€860.00

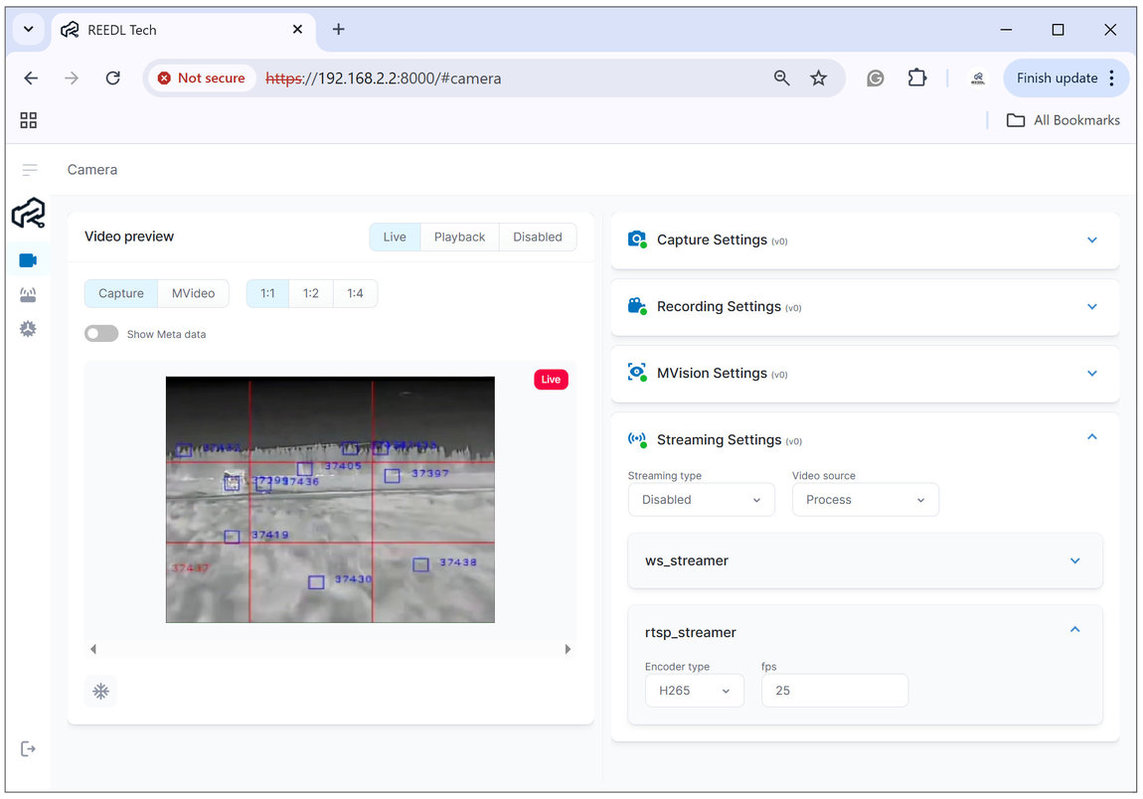

TFlow SDK

TFlow SDK is a partially open, partially commercially available platform specifically dedicated for rapid Machine Vision algorithms development and debugging

  • Basic functionality out-of-the-box. Video capturing and recording, customer’s algorithms parameters configuration and tunning, different kind of streaming.
  • Developers friendly UI. New configuration parameters can be added in minutes, without WEB side modification. Required parameters are defined and automatically exported from C++ application.
  • Real frame-by-frame WEB player. Recorded video can be played frame-by-frame along with recorded aux data (for ex. IMU readings) for debugging and analysis.
  • Sand box examples. The package includes trivial algorithm (feature tracking) implementation example for rapid custom algorithms development starts.

Customization service

Integration to customer products
Integration to customer products
Carrier board customization
Carrier board customization
Additional comm interfaces
Additional comm interfaces
Custom video pipeline
Custom video pipeline
